Urban Racoon + Unit 1 FARO
Urban Racoon + Unit 1 FARO

Urban Racoon + Unit 1 FARO

€5,599.00
Color
  • Light grey

Customize

CHASSIS

This urban ebike model maintains the characteristic carbon fiber frame made in Spain. In addition, the fork and handlebar are made with the same material, making this urban Bewatt a light and resistant model.

POWER TRAIN

The Bewatt Urban Racoon is equipped with a Bafang M800 (37v) motor, one of the world's leading manufacturers of mobility and electric propulsion. Equipped with a 555WH in-house manufacturing battery with the latest generation cells.

PARTNERS

Our partners make our e-bikes the perfect choice for the city, by using the best components. Equipped with Shimano XT/GRX mixed transmission. Brake controls and Shimano calipers with Galfer disc. For tires, this urban ebike has the Michelin power road model..

Image alt
Image alt
Image alt
Image alt
Image alt

URBAN RACOON SPECIFICATIONS

DESCARGAS

Manual de uso

FRAME
FRAME
Carbon fiber frame
FORK
Carbon fiber
POWER
100mm -5 ° carbon fiber
HAND
Carbon in 400 o 420 mm
SADDLE
PRO TURNIX PERFORMANCE (black)
SHANK
Carbon fiber
BREAKING SYSTEM
FRONT BRAKE
Shimano Ultegra
BACK BRAKE
Shimano Ultegra
DISCS
Galfer 160mm
TRANSMISSION
REAR DERAILLEUR
Shimano Ultegra
BUTTON
Shimano Ultegra
CONNECTING ROD
Bafang 170 mm
CASSETTE
Shimano 11v 11-34
CHAIN
Shimano HG-X11
PLATE
Compact 50/34
WHEEL
TYRES
Carbon profile 40 mm
BUSHINGS
Novatec con radios Sapim CX Ray
BACK COVER
Michelín All Season 700x28
FRONT COVER
Michelín All Season 700x28
PROPULSION
MOTOR
M800 Bafang (37V)
DISPLAY
Bafang DP C251
BATTERY
*Maximum Capacity
555W/h celdas Samsung - 37v.
CONNECTIVITY
APP
App available for iOS and Android.

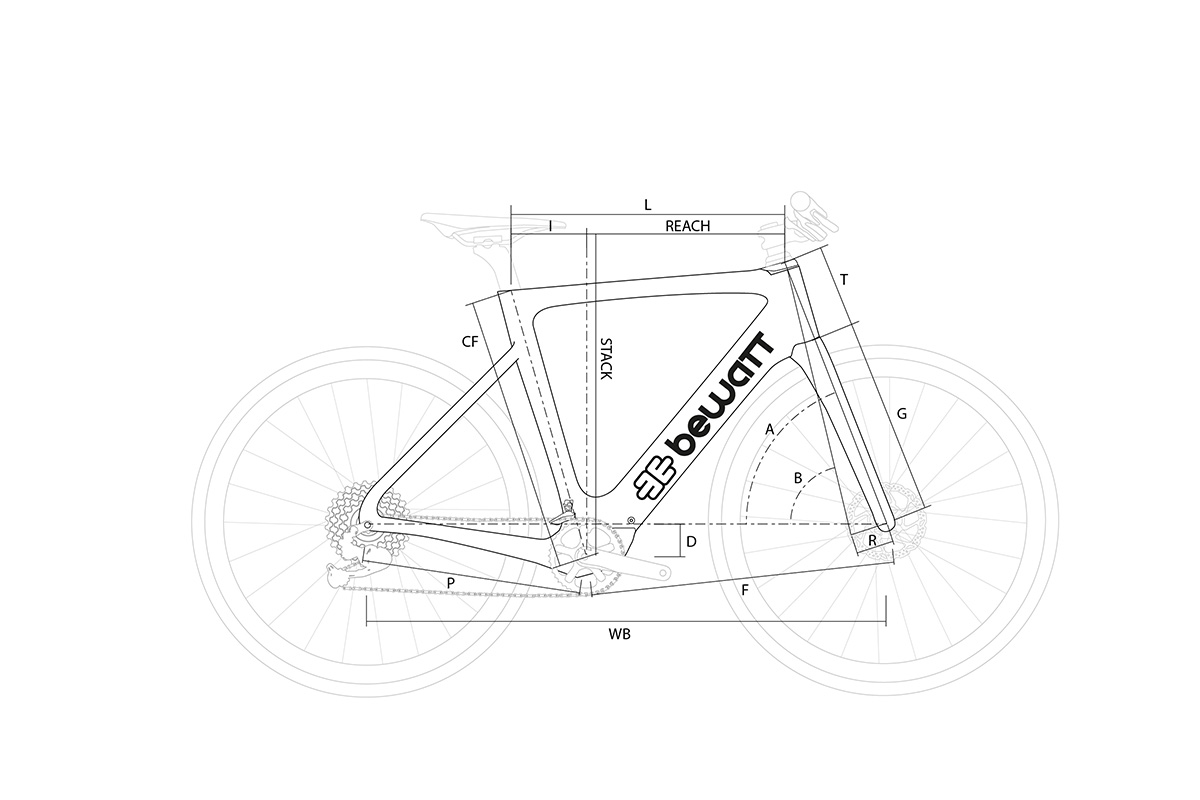

GEOMETRY

SIZES

SIZE XS S M L XL
CF 470 500 530 550 580
L 515 525 545 560 590
I 149,7 155,3 161,7 175,4 187,5
A 74,5º 74º 73,7º 73º 72,5º
B 71,5º 72º 72,5º 73º 73,5º
F 579 579,3 530 550 580
P 415 415 530 550 580
T 130 130 140 160 180
D 72 72 72 72 72
R 50 50 50 50 50
G 380 380 380 380 380
STACK 539,8 541,6 530 550 580
REACH 365,3 369,7 383,3 384,6 402,5
WB 983,3 983,5 996,1 999 1081,2
