Warranty
5-year warranty on frames and framesets.
3-year warranty on components and equipment.
2-year warranty on batteries.
More information in our Warranty Policy.
3-year warranty on components and equipment.
2-year warranty on batteries.
More information in our Warranty Policy.
Components
Frame: made of carbon fiber
Toray T700-T800 high modulus.
-
Motor: Bafang M820, rated power 250W
80Nm torque (limited to 25km/h).
-
Battery: 48v Lithium-ion. Manufactured in-house
660W with high discharge cells.
-
Shock absorber: Öhlins
TTX AIR ENDURO TRUNNION.
Fork: Öhlins
36mm. 160mm travel.
-
Cockpit: Syncros Hixon iC SL Rise 25.
Saddle: Ergon SM Enduro Comp.
Postpost: telescopic Fox Transfer sl 31.06Ø 150mm.
-
Discs: Galfer Shark 203/180mm.
Brakes: Shimano Deore XT BR-M8120.
Rims: Shimano Deore XT WH-8200 29'' micro.
Front tire: Michelin Force AM2 29X2.40 inch competition line.
Rear tire: Michelin Force AM2 29X2.40 inch competition line.
-
Shifter: Shimano Deore XT RD-M8250 SGS 12 speed.
Crank: Specific Bafang 165mm.
Cassete: Shimano Deore XT CS-M8200 12 speeds 10/52..
Chain: Shimano 126 links + QL CN-M8100 12 speeds.
Plate: Specific Bafang 34D.
-
Display: EPAC with 5 levels of assistance
App: available for iOS and Android.

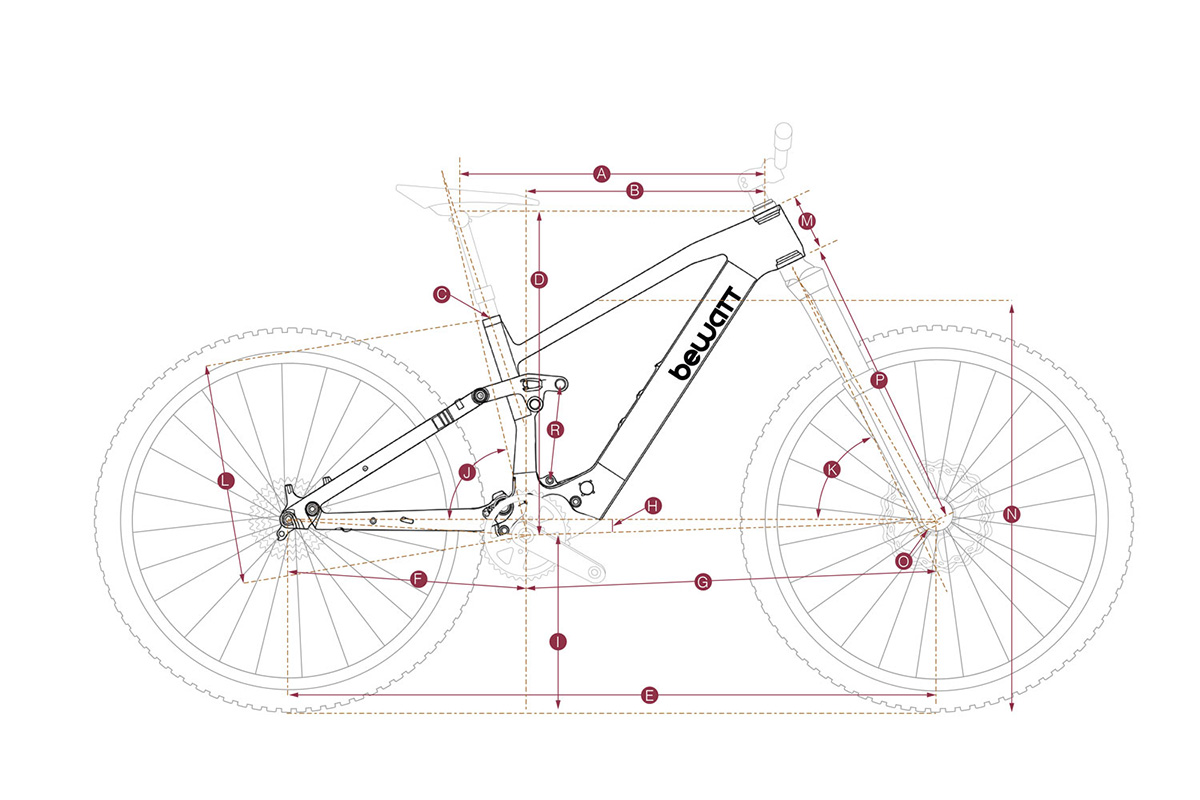

Geometries
| S | M | L | |
|---|---|---|---|
| A - Length of top tube | 571,7 mm | 598,0 mm | 625,0 mm |
| B - Reach | 430 mm | 455 mm | 480 mm |
| C - Seat tube height | 150 mm | 200 mm | 200 mm |
| D - Stack | 614,0 mm | 619,4 mm | 627,5 mm |
| E - Wheelbase | 1205,5 mm | 1232,6 mm | 1261,9 mm |
| F - Sheath length | 457 mm | 457mm | 457 mm |
| G - Center forward | 757,9 mm | 783,2 mm | 812,5 mm |
| H - Bottom bracket drop | 30 mm | 30 mm | 30 mm |
| I - Bottom bracket axle height | 335 mm | 335 mm | 335 mm |
| J - Seat tube angle | 77º | 77º | 77º |
| K - Steering tube angle | 64,5° | 64,5° | 64,5° |
| L - Seat tube length | 390 mm | 420 mm | 450 mm |
| M - Head tube length | 105 mm | 110 mm | 120 mm |
| N - Altura del soporte de la bicicleta | 782 mm | 801 mm | 825 mm |
| O - Rake/shift fork | 44 mm | 44 mm | 44 mm |
| P - Fork length, complete | 563 mm | 563 mm | 563 mm |
| Q - Path | 128 mm | 128 mm | 128 mm |
| R - Rear suspension travel | 185x55 mm | 185x55 mm | 185x55 mm |
Manual
We reserve the right to make changes to product components without prior notice, subject to availability, in order to maintain the same quality. Product photos may not match the model's specifications. Due to screens, some colors may vary slightly from the original model.
