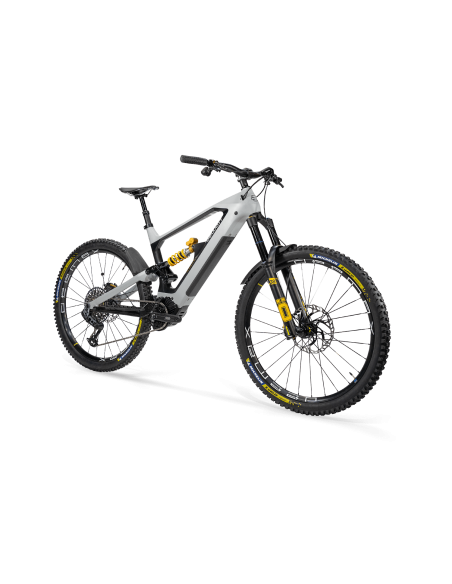

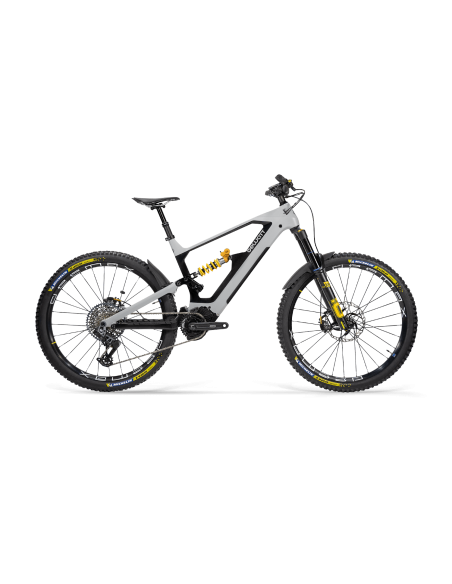

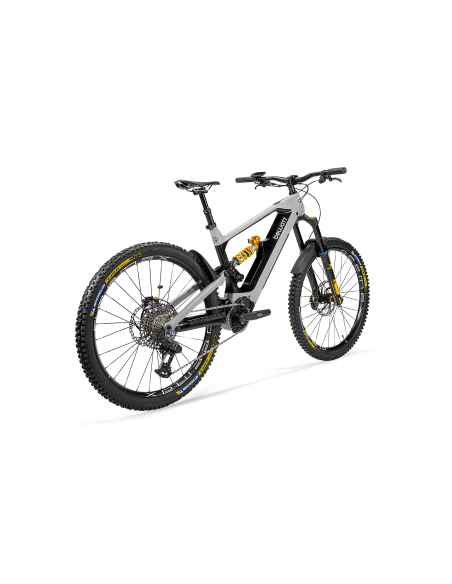

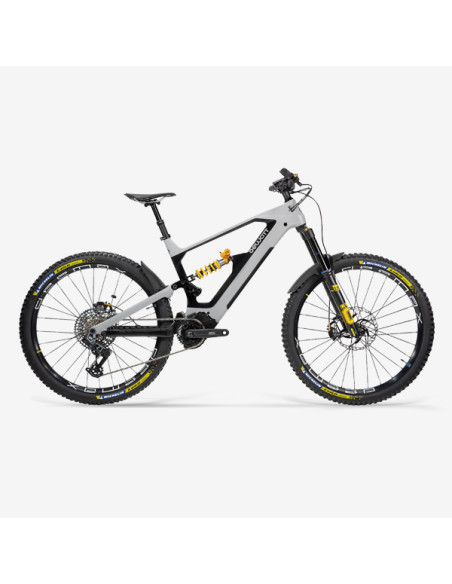

New model of electric mountain bike. Taking the Mountain Code 1200 model as a starting point but customizing design details of the initial model to achieve this RG model.
Frame
The Code 1200 RG model maintains the characteristic carbon fiber frame like the rest of Bewatt. On this occasion, the paint used was a combination of greys: matt grey, glossy gray and glossy carbon, resulting in this original frame.
POWER TRAIN
It maintains the Bafang M560 motor characteristic of our electric mountain bikes as well as the 1200 Wh battery of our own manufacture and latest generation high discharge cells.
PARTNERS
Always hand in hand with the best components on the market, we highlight the Shimano XT Linkglide 11-speed gearbox, providing the ebike with greater durability and smooth shifting. Öhlins damping, Mavic wheels and Magura brakes, among others.
CODE 1200 RG SPECIFICATIONS
Frame: made of carbon fiber
Tapered headset with NC-T6061 aluminum insert
-
Motor: Bafang M560 with rated power of 250W
120Nm torque (limited to 25km/h)
-
Battery: Lithium-ion 48v. In-house manufacturing
Sanyo high discharge cells with 1200W/h capacity
-
Shock absorber: Öhlins
TTX Enduro
Fork: Öhlins
RXF38 170mm travel
-
Handlebar: Shimano PRO Koryak 35mm
Saddle: Ergon
Tija: telescopic E- THIRTEEN.
Anchors: titanium screws.
-
Discs: Galfer 223mm/203mm and 2mm thick specific e-bikes
Brakes: Magura MT7 4 pistons
Rims: Mavic E-Deemax 30
Front tire: Michelín E-Wild 29x2.60. Tubeless Ready
Rear tire: Michelín E-Wild 29x2.60. Tubeless Ready
-
Change: Cues 11V.
Crank: Bafang
Cassete: Cues 11V 11/50.
Chain: Shimano IIV.
Pedals: Shimano GR400.
Plate: Bafang 38 T aluminum.
-
Display: EPAC with 5 levels of assistance
App: available for iOS and Android.
-
GEOMETRY
SIZES
| S-M | M-L | L-XL | |
| A | 110mm. | 120mm. | 130mm. |
|---|---|---|---|
| B | 55,6mm. | 55,6mm. | 55,6mm. |
| C | 622,8mm. | 646,3mm. | 674mm. |
| D | 420mm. | 446mm. | 470mm. |
| E | 623mm. | 632mm. | 641mm. |
| F | 510mm. | 510mm. | 510mm. |
| G | 710mm. | 710mm. | 710mm. |
| H | 1242,3mm. | 1266,3mm. | 1294,4mm. |
| I | 410mm. | 451mm. | 510mm. |
| J | 66º | 66º | 66º |
| K | 72,5º | 72,5º | 72,5º |
| L | 290mm. | 290mm. | 290mm. |
