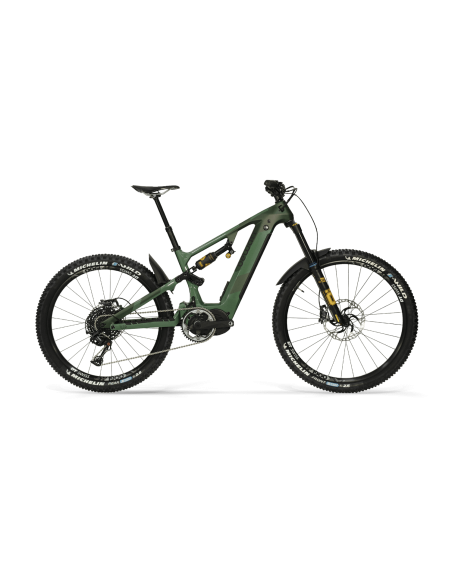

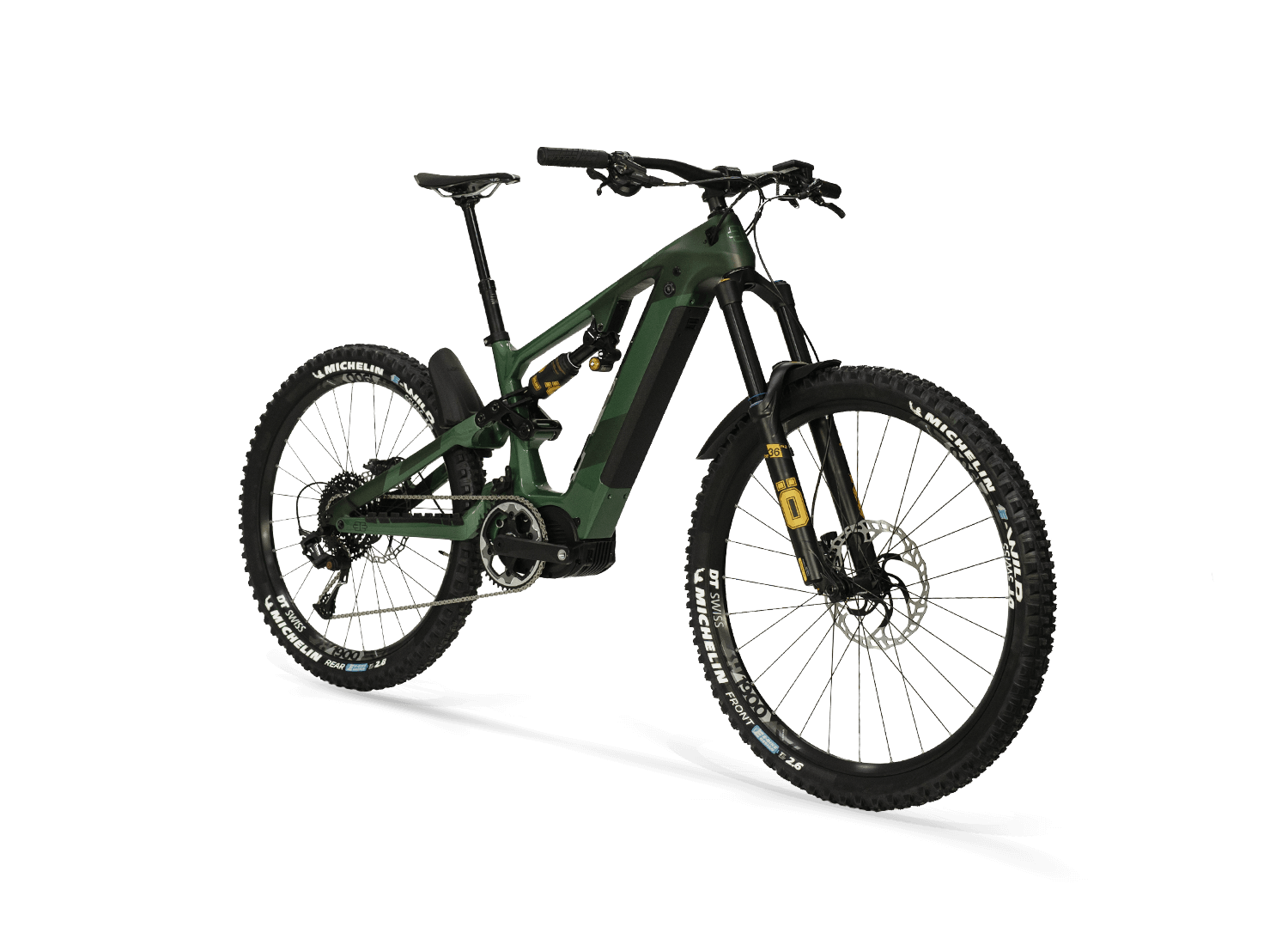

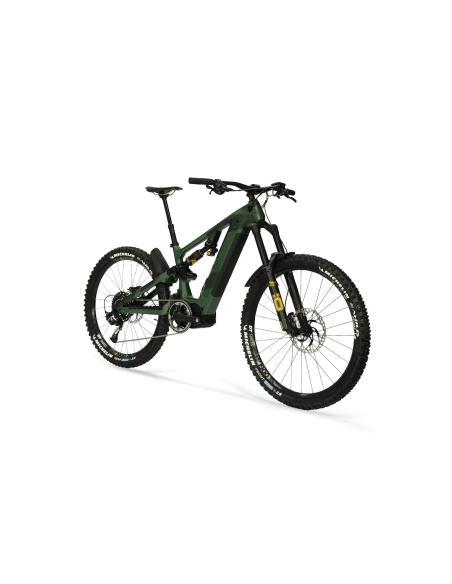

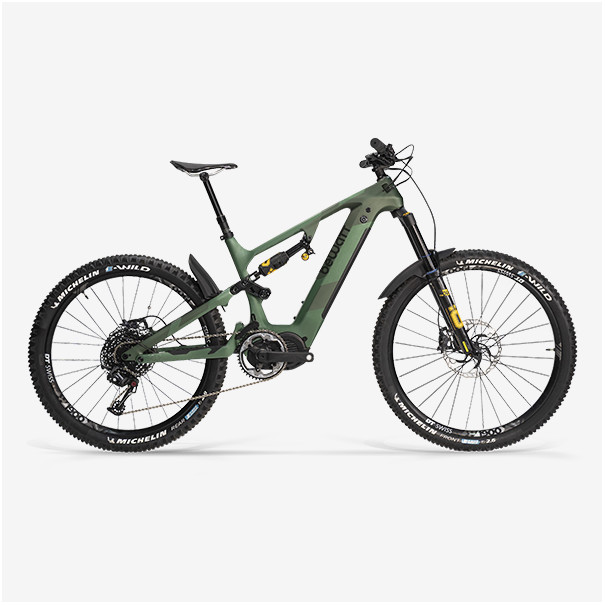

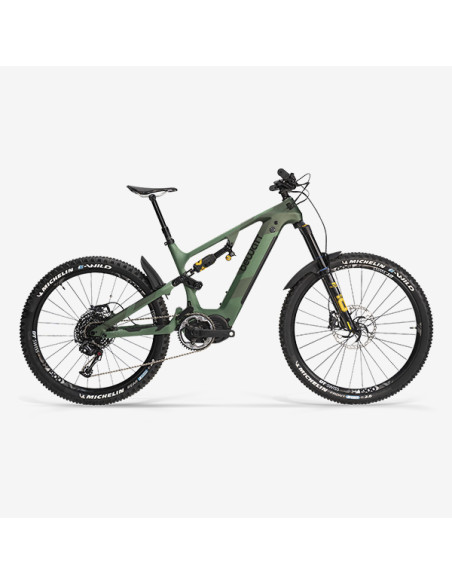

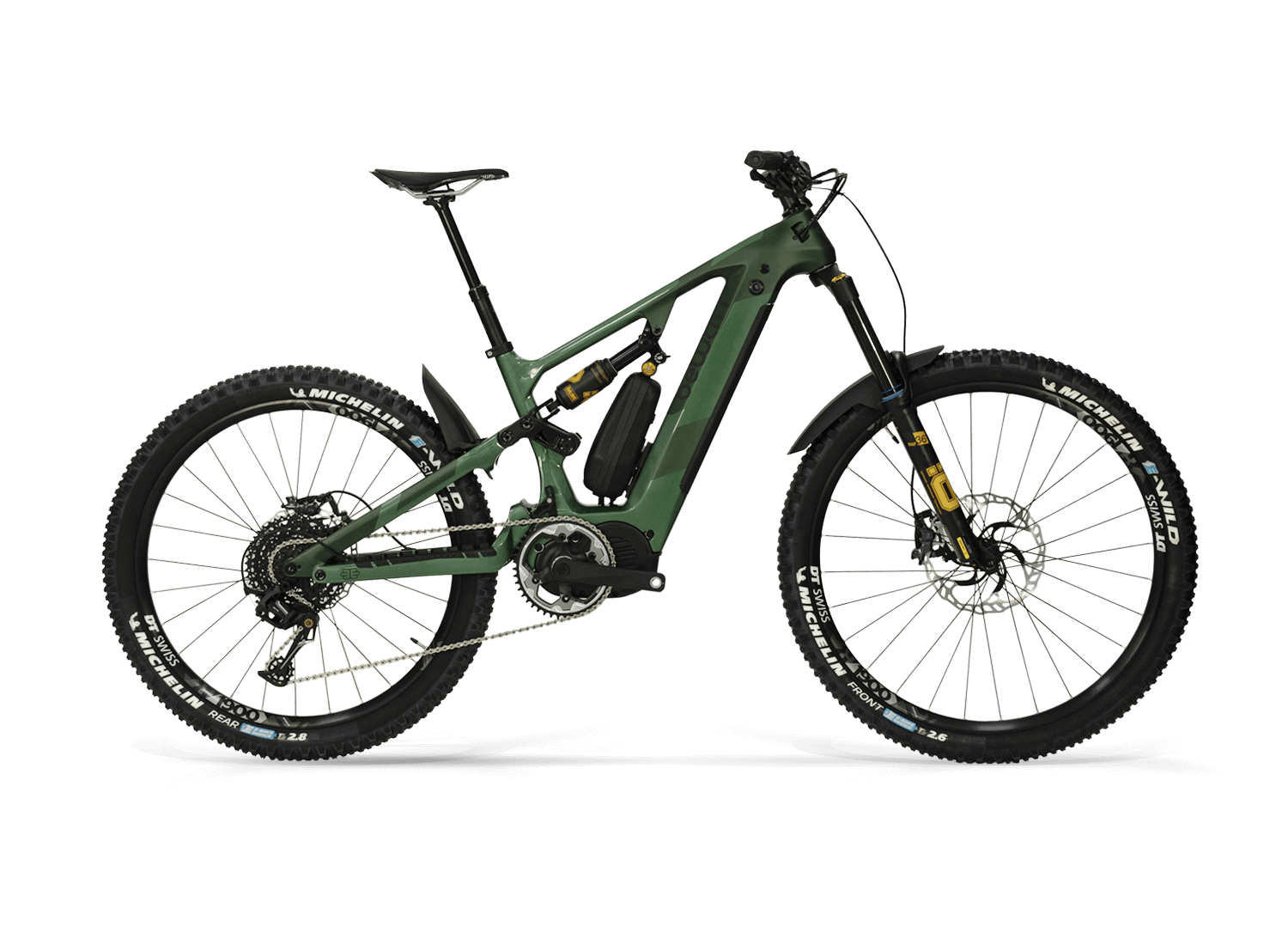

Mountain Wolf PRO 23

Mountain Wolf PRO 23

€8,699.00
Color
  • Camouflage Green

Test Customize

FRAME

The Bewatt Mountain Wolf PRO model maintains the carbon fiber frame made in Spain and the titanium anchors characteristic of our e-bikes to maintain the durability, resistance and lightness of our electric bicycles.

POWER TRAIN

Equipped with the Bafang M620 engine. Providing our e-bikes with the qualities of one of the best electric propulsion manufacturers in the world. The Bafang motor of the Bewatt Mountain Wolf PRO maintains a nominal power of up to 250W and a maximum torque of 160Nm. It has an internal 48V Lithium-Ion battery with state-of-the-art high-discharge cells and a capacity of 1000 Wh.

PARTNERS

We manufacture our Mountain Wolf ebikes using the components of the most recognized brands on the market: Öhlins front and rear suspension, transmission entrusted to Box and Shimano brakes, with 4 pistons and Galfer discs. Michelin tires with their E-Wild model with X-Gum technology designed for the best ebikes on the market, E-Save-Battery and Bafang engines give rise to ebike models with the best qualities and qualities, thanks to the alliance with our Partners.

MW PRO SPECIFICATIONS

DOWNLOADS

FRAME
FRAME
Made of carbon fiber. Tapered headset featuring NC-T6061 aluminum insert in head tube and seat post housing.
SHOCK ABSORBER
Öhlins TTX AIR ENDURO TRUNNION
FORK
Öhlins RXF36 170mm
POWER
Shimano PRO Koryak 35 mm
HANDLEBAR
Shimano PRO Koryak 35 mm
SADDLE
Shimano Pro stealth Sport
TELESCOPIC SEATPOST
Shimano PRO Koryak
BREAKING SYSTEM
FRONT BRAKE
Shimano XT 4 pistons
BACK BRAKE
Shimano XT 4 pistons
BACK DISC
Galfer 203mm y 2mm specific for ebikes.
FRONT DISC
Galfer 223mm y 2mm specific for ebikes.
TRANSMISSION
CHANGE
BOX TWO. 9v specific for ebikes.
CONNECTING ROD
FSA.
CASSETTE
BOX THREE 12-46. 9v.
CHAIN
BOX
PEDALS
Shimano GR-500
PLATE
Bafang 44 T (Aluminum).
WHEEL
TIRES
DT SWISS-H1900 Mullet.
BACK COVER
Michelín E-Wild 27,5x2,80. Tubeless Ready.
FRONT COVER
Michelín E-Wild 29x2,60. Tubeless Ready.
OTHERS
MOTOR
Bafang 620 w featuring BEWATT specifications, rated power up to 250w with 160 Nm (limited 25km/h).
DISPLAY
Mountain Wolf display EPAC with 5 levels of assistance.ECO y SPORT mode greater acceleration and performance.
BATTERY
In-house de Litio-ion 48v with Sanyo - cells qith a capacity of 1000W/h.
CONNECTIVITY
APP
App available for iOS and Android.

GEOMETRY

SIZES

A 120mm.
B 55,6mm.
C 640mm.
D 420mm.
E 620mm.
F 510mm.
G 710mm.
H 1230mm.
I 440mm.
J 65º
K 66º
L 290mm.
